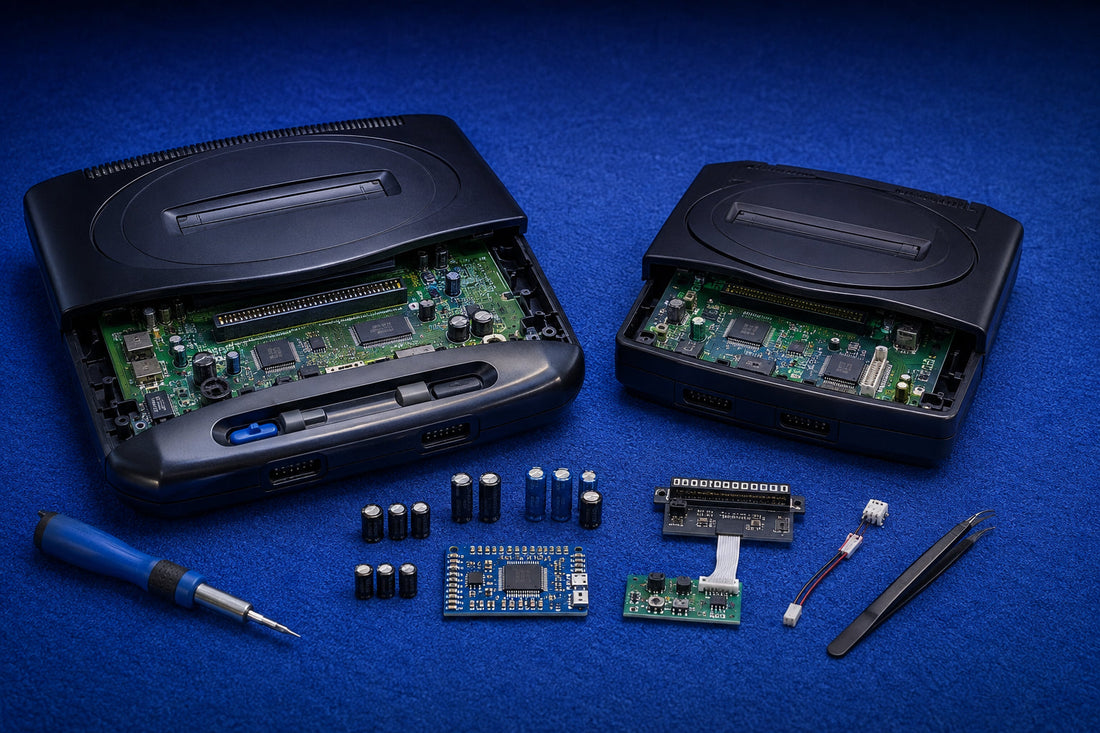

The SEGA Mega Drive Model 1 and Model 2 share the same basic purpose, but their case design, connectors and numerous motherboard revisions mean repair and upgrade work should be booked for the correct model.
How to identify the model
The Model 1 is the larger console, commonly featuring a headphone socket and volume slider. The Model 2 is smaller and more compact with a different AV connector. Always check the label underneath as revisions exist within both families.
Capacitor replacement
Electrolytic capacitors age even when the console is not heavily used. A professional recap replaces these components with quality modern parts and includes inspection for leakage, corrosion and heat stress. A recap is preventative servicing; it is not a guaranteed cure for every unrelated fault.
Model 1 recap service · Model 2 recap service
Triple Bypass V2.1
This upgrade targets RGB video and audio quality. Model 1 work normally introduces a Model 2-style mini-DIN AV connection, while Model 2 retains its existing connector style. Read our Triple Bypass explanation.
Switchless region-free upgrade
A compatible PAL console can be given Europe, USA and Japan region selection plus 50/60Hz switching using the original controls and a status indicator. Imported cartridges may still need physical accommodation, and the display must support the selected output.
Ultimate restoration package
For a console intended for regular long-term use, the complete package combines recap, Triple Bypass V2.1, switchless region operation, cleaning, thermal inspection and extended testing.
